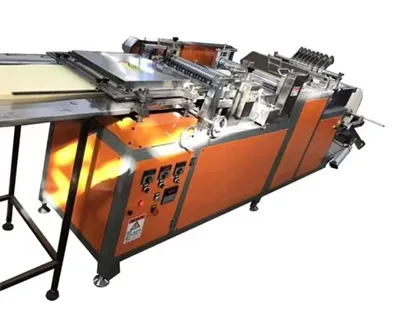

Rotary Pleating Machine (Standard Spin-on Filter Pleating Machine, Manual Adjustment of Gathering Wheel Direction, Distance, and Height)
Product Details Overview
Rotary Pleating Machine (Standard Spin-on Filter Pleating Machine, Manual Adjustment of Gathering Wheel Direction, Distance, and Height)
Equipment Parameters:
1. Maximum filter paper passing width: 600mm.
2. Minimum pleat height: 6mm, Maximum pleat height: 40mm.
3. Compatible with inner embossing, outer embossing, inner & outer embossing, and scoring rollers.
4. Working speed: 10-600 pleats/min.
5. Motor: Main motor power 1.5KW.
6. Steam humidifying power: 2.6KW.
7. Thermosetting heating power: 6.0KW.
8. Temperature control range: Room temperature to 200°C.
9. Air source pressure: 0.8MPa.
10. Machine dimensions: L3170 x W830 x H1150 mm.
11. Application range: Processing oil filter elements.
12. Functions: Pneumatic paper loading stand, pre-slitting, humidifying, scoring, folding, thermosetting.
Remarks: General equipment
Technical Specifications
Brand Name
ENFT
Place of Origin
China
Model Number
—
Internal Product ID
ENFT-EFM-014
Certification
Manufactured Under Strict Quality Control
MOQ
1 Unit
Unit of Measurement
台
Price
—
Supply Ability
100 Sets/Month
Packaging
—
Delivery Time
45 Days After Receipt of Advance Payment
Payment Terms
—
