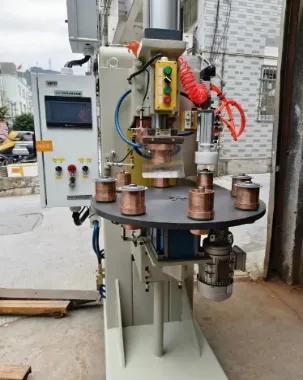

Equipment Function:
Welding screw plates and sealing plates, with automatic sealing glue coating. High automation level, reducing labor and cost.

Production Speed:
More than 20 pieces per minute

Electrical Specifications:

• Voltage: 380V / 50Hz

• Rated Capacity: 280 KVA

• Air Pressure: ≥ 0.6 MPa

Equipment Features:

• Medium-frequency inverter welding system

• Maximum short-circuit current: 52 KA

• Welding time control accuracy: 1 ms

• High heat efficiency with stable DC output (no inductance interference)

Spot Welding Parameters:

• Sealing Plate Thickness: 0.5 / 0.6 / 0.8 mm

• Screw Plate Thickness: 2.5 / 3.0 / 4.0 / 5.0 mm

• Sealing Plate Diameter: φ80 – φ130 mm

• Screw Plate Diameter: φ65 – φ110 mm

Special Functions:

• Single-point / Continuous / Cyclic modes

• Manual / Automatic switching

• Fast / Normal mode switching

• Gantry welding / Standard spot welding switching
