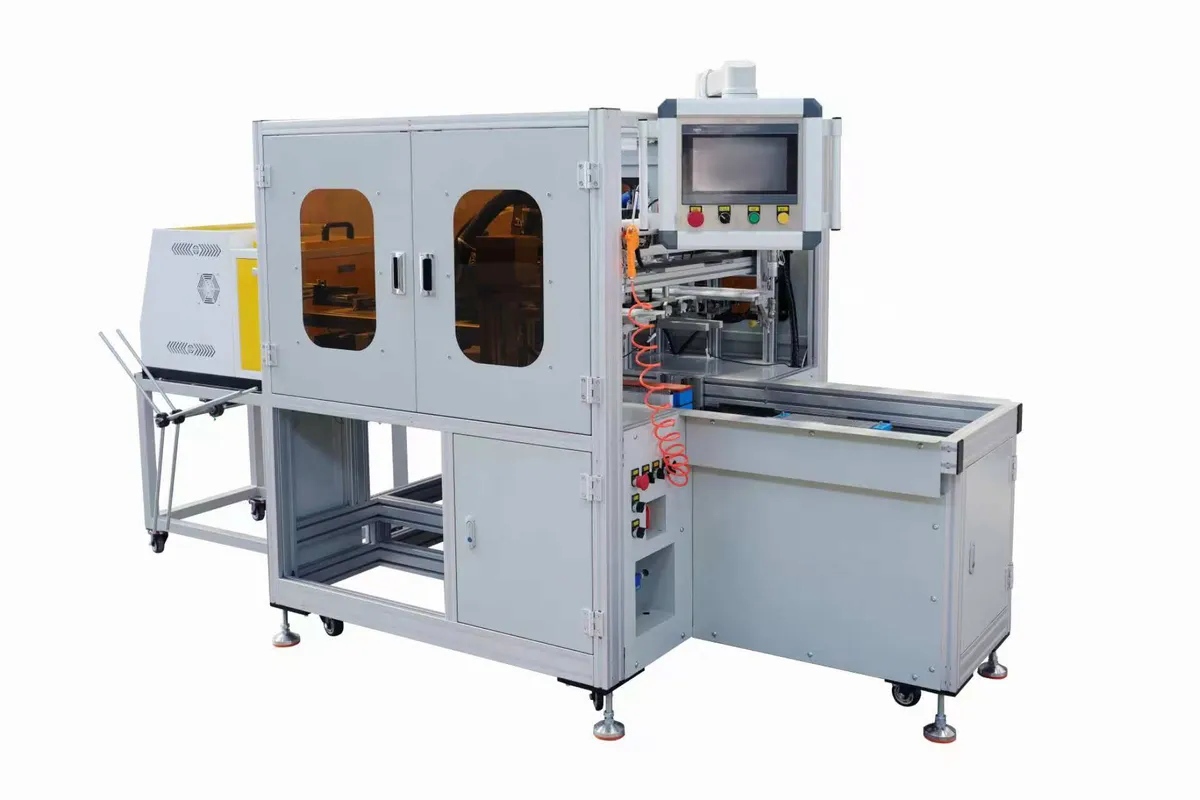

Cabin Filter Edge Sealing Machine
Cabin Filter Edge Sealing Machine
25000$
The Cabin Air Filter Edge Sealing Machine is a fully automatic solution designed for precision edge bonding of cabin filters. It integrates the entire process including: feeding – edge sealing – unloading, ensuring high productivity and consistent product quality. This machine is ideal for manufacturers aiming for high-volume production with minimal labor and maximum precision.
Technical Specifications:
Dimensions: 1920 × 1350 × 1742 mm
Voltage: 220V
Power: 12 kW
Air Pressure: ≤ 0.6 MPa
Production Speed: 4–6 pcs/min
Glue Melting Speed: 10 kg/hour
Height Tolerance: ±0.20 mm
Working Range:
Length: 100–400 mm
Width: 100–350 mm
Height: 10–60 mm
Edge Width: 10–60 mm
Thickness: 1–5 mm
System Components:
PLC control system with touchscreen
High-precision servo motors
Dual hot melt glue system (2 guns)
Edge cutting & feeding unit
Dual edge sealing mechanism
Operation Process:
Load filter into mold
Automatic edge feeding
Precise glue application
Edge bonding process
Automatic unloading via conveyor
Key Features:
✔ Fully automatic operation (Auto + Foot Switch)
✔ High precision and consistent quality
✔ Advanced safety system with emergency stop
✔ Reduced manual labor
✔ Stable structure with no vibration
✔ Easy maintenance & spare parts availability
✔ Intelligent glue control system
✔ Suitable for mass production
