Machine Type

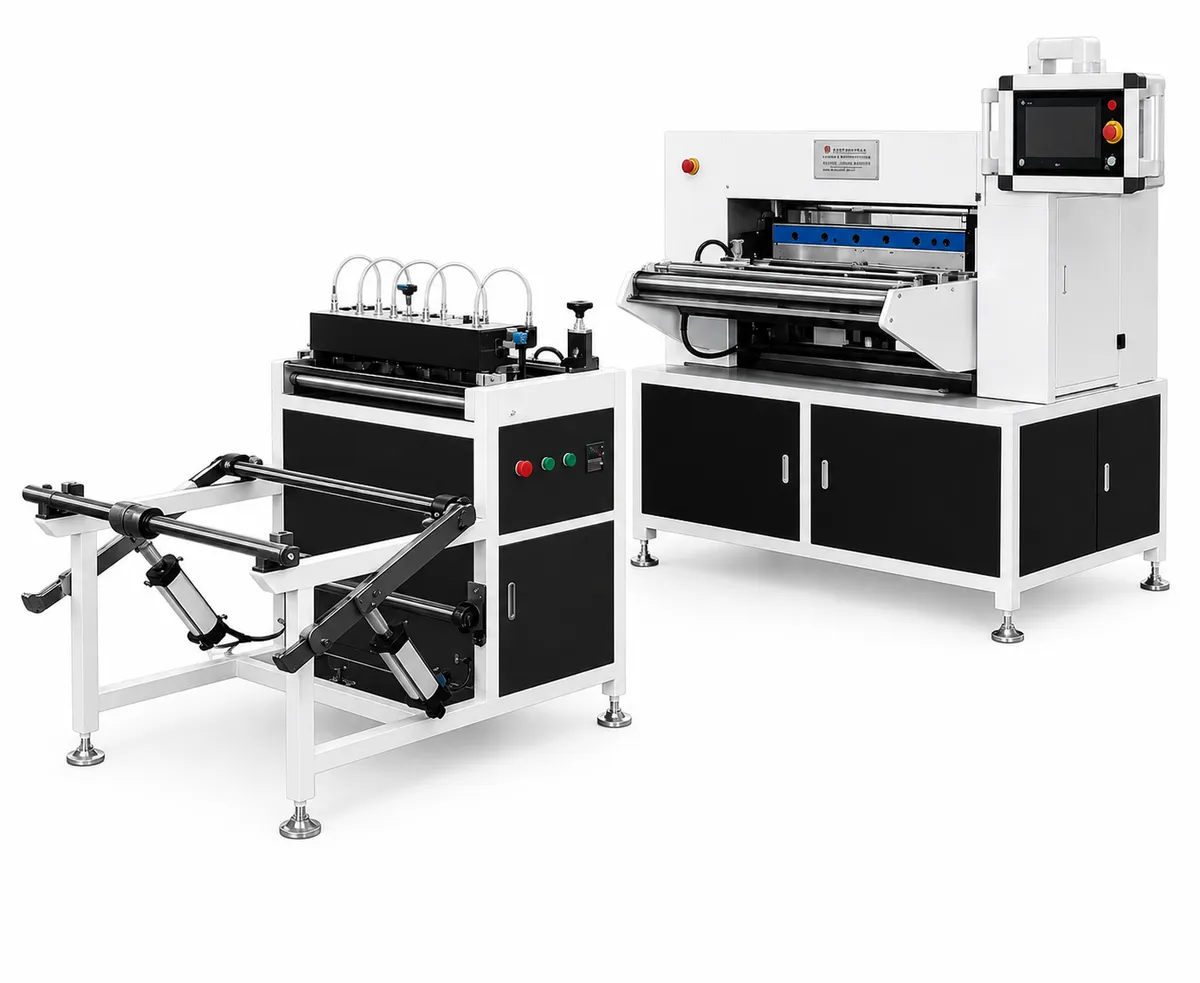

Automatic Reciprocating Filter Media Pleating Machine

Model

1050

Application

Pleating filter media for air filters, cabin filters and industrial filters

Paper Feeding Speed

0.5–12 m/min (Adjustable)

Adjustable Paper Width

32–650 mm

Maximum Product Width

650 mm

Pleat Height Range

8–70 mm

Pleating Speed

0–150 pleats/min (Adjustable)

Power Supply

220V / 380V, 50Hz

Main Motor Power

0.75 kW

Preheating Power

3.0 kW

Temperature Range

Ambient–200°C

Working Air Pressure

0.6 MPa

Paper Feeding Unit Size

1300 × 1100 × 1100 mm

Pleating Unit Size

1470 × 1100 × 1240 mm

Paper Feeding Unit Weight

450 kg

Pleating Unit Weight

850 kg

Integrated Functions

Automatic paper feeding, pre-slitting, reciprocating pleating, heat preheating and continuous production.

Features

Adjustable pleat height, stable reciprocating motion, precise pleat formation, high production efficiency, easy operation, and compatibility with various filter media materials.
