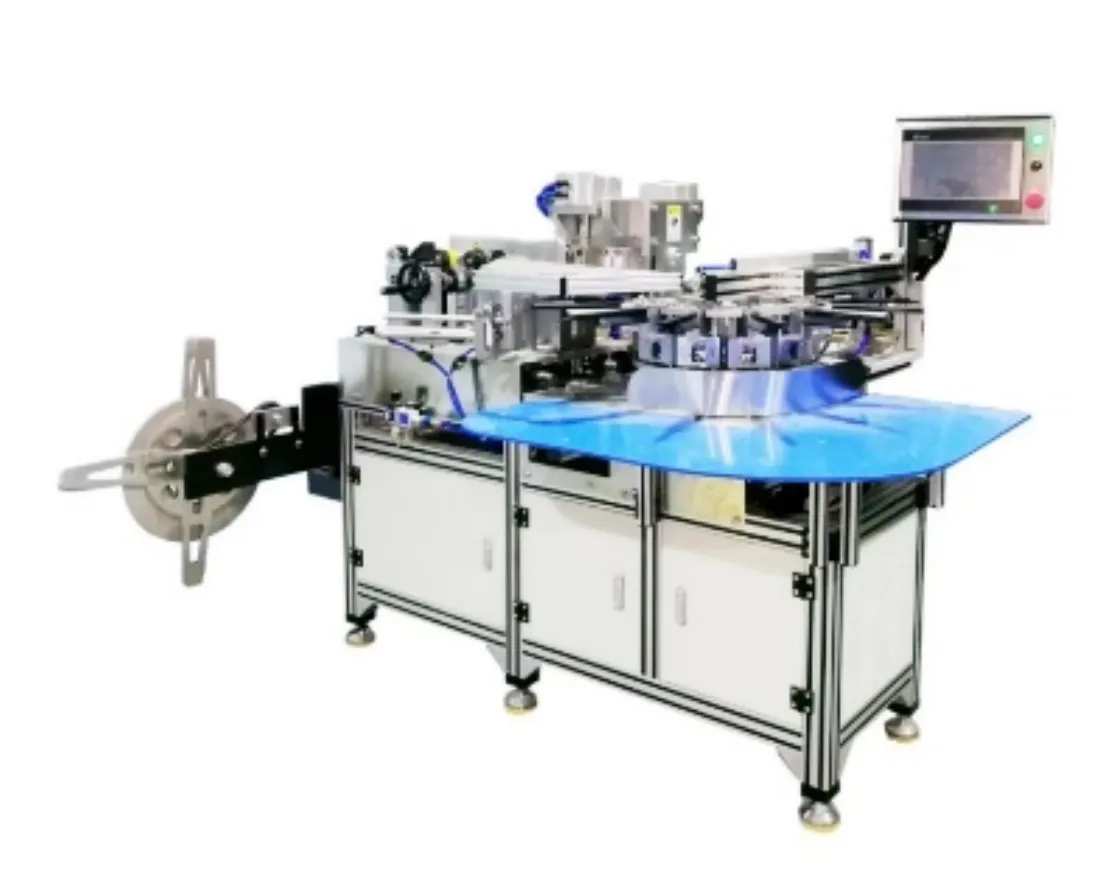

Automatic Metal Strip Clamping Machine
Product Details Overview
Automatic Metal Strip Clamping Machine
USD 9,999
Item | Specification |
|---|---|
Application | Automatic clamping and fixing of metal strips onto filter paper cores |
Production Speed | 20–30 pcs/min |
Pleat Height | 9–20 mm |
Filter Element Height | 25–260 mm |
Metal Strip Thickness | 0.25–0.35 mm |
Metal Strip Width | 12 mm |
Control System | PLC + Variable Frequency Drive (VFD) |
Feeding System | Automatic Coil Feeding |
Cutting Method | Automatic Cutting |
Transfer System | Rotary Indexing Table |
Power Supply | AC 220V / 50Hz |
Total Power | 5.5 kW |
Working Air Pressure | ≥0.6 MPa |
Machine Dimensions | 1300 × 1000 × 1000 mm |
Machine Weight | 600 kg |
Technical Specifications
Brand Name
ENFT
Place of Origin
China
Model Number
ENFT-AMSC-260
HS Code
8479899990
Internal Product ID
ENFT-LDSO-003, ENFT-OFM-057
Certification
Manufactured Under Strict Quality Control
MOQ
1
Unit of Measurement
Set
Price
USD 9,999
Supply Ability
50 Sets/Month
Packaging
Standard Export Wooden Case
Delivery Time
45 Days After Receipt of Advance Payment
Payment Terms
100% T/T in Advance
